Nissan Australia

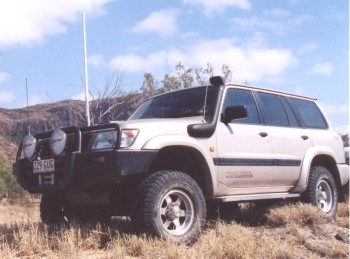

Our vehicle when purchased was a gold coloured 1999 Nissan GU Patrol ST with the 2.8TDI engine bought second-hand in August 2002. It had a genuine Nissan winch bar, towbar and colour coded flares when bought as well as CSA Assault alloy wheels and 265/75R16 Cooper Discoverer A/T tyres. The wheels and tyres were given the flick after installing the 4" lift as it looked a bit dorky with the smaller wheels. In their place I fitted a set of BFG 35X12.5R15 M/T's. One problem with doing this though is that the little 2.8 really struggled to push the big Nissan around with the bigger tyres fitted. In December 2003 I decided to fit a Motson's ECU enhancer for more grunt and change the tyres down from the 35's back to a 285/75R16 and dress the vehicle up with a set of Alloys.

At the end of October 2004, our GU developed a knocking sound in the engine which sounded shocking. Diagnosis was that the Number 2 big end bearing had failed and to fix it was going to be big dollars. This was the deciding factor at looking into a conversion - the problem being - what engine. After looking at all my options I came across a bloke who would do the job for roughly $10,000 to could convert my 2.8TDI to a factory GU 4.2TD.

With family touring in mind (and sometimes a bit of extreme offroading), we have made some changes to improve vehicle performance off-road. These include:

  • GU TD42T conversion
  • Hi-flowed turbo
  • PWR 0381 Radiator (50% increase in capacity)
  • ARB winch bar
  • Premier DV9000 electric winch
  • Lightforce 240 blitz spotlights
  • Goodyear Wrangler 285/75R16 MTR's
  • CSA Scorpion RV 16X8 alloy wheels
  • Kaymar spare wheel spacer
  • Opposite Lock rear bar with dual swing-a-way wheel carriers and outboard bracket
  • 5" TJM heavy duty springs and long travel shocks all round
  • TJM adjustable panhard rod on the front
  • Tough Dog RTC steering dampener
  • Custom front trailing arm drop brackets
  • Strengthened rear lower trailing arms (tube in tube)
  • Polyair bags on rear
  • Front and Rear ARB Airlockers
  • Marks Gearmaster low range gears (3.743:1 - 85% reduction)
  • 4.111 diff gears (from GQ coil cab ute)
  • Endless Air compressor with 9L air tank and front and rear air couplings
  • 4WD Systems 159 litre long range main fuel tank
  • 4WD Systems 81 litre long range auxiliary fuel tank
  • CAV fuel filter and adaptor
  • Airtec snorkel
  • Beaudesert dump pipe and 3" exhaust system
  • Extended front and rear diff breathers as well as transmission and transfer case breathers
  • Diff drain plug protection
  • TJM universal roof rack and custom rack sack
  • Glind hot water shower kit
  • Redarc dual battery isolator with 25mm˛ cabling
  • Couplertec heavy duty electronic rust prevention system with 4 pads
  • 2 x Supercharge Gold starting / winching batteries permanently wired in parallel
  • 260AHr Fullriver AGM aux battery mounted in custom tray in rear
  • ARB air compressor
  • Custom second glovebox hidden behind unused passengers side airbag.
  • Sandgrabba floor mats
  • Drivers and passengers fire extinguishers
  • 2" Driver and passengers seat lift
  • Advanced digital turbo timer
  • AusCruise cruise control
  • Garmin GPS 76
  • Tyredog tyre monitoring system fitted to the Patrol and camper (6 wheels)
  • Outback overhead console
  • GME MT410G emergency personal locator beacon (PLB)
  • Icom IC-400Pro 25W programmable UHF radio
  • Icom IC-41s 5 W programmable handheld radio
  • Icom IC-F7000 100W programmable HF radio
  • Codan 9350 Autotune HF antenna
  • GME AE4705 UHF antenna
  • GME AE409L UHF antenna (spare)
  • Nokia N95 Bury carkit
  • RFI CD2197 tri band antenna
  • O2 XDA II running OziExplorerCE and Destinator PN
  • O2 genuine carkit connected to GPS
  • Plasmatronic PL20 solar regulator
  • 1000w modified sinewave invertor
  • Tekonsha Voyager electronic brake controller
  • Autron dual gauge pillar pod
  • VDO boost gauge
  • VDO Pyrometer gauge
  • Red Desert cargo draws
  • Custom 56 litre stainless steel water tank
  • Waeco 80 litre 3 compartment fridge freezer
  • Waeco 8 litre console cooler/heater
  • Tyrepliers tyre changing and repair kit
  • T-Max and Opposite Lock recovery kits
  • PRT ground anchor
  • Spare belts, filters and fluids

Ready to fit accessories:

  • Custom rock sliders

Work in progress:

  • Car PC to replace stereo and navigation equipment

Wish list:

  • Waeco fridge slide
  • LPG fumigation
